生物颗粒机S550VT，德国减速器齿轮，1000公斤/小时
马来西亚产生物木屑颗粒机，装配有德国减速器齿轮，德国FAG轴承，3年保修。
本机适用于生产生物质木屑颗粒和油渣饼动物饲料。
可根据客户要求生产直径为2、4、6、8、10、12、14毫米的颗粒，颗粒长度可以随时调整。
技术指标:
•碳钢结构
•日本assab 709碳钢传动轴
•德国减速机齿轮箱
•合金钢HRC58-60环与模
•德国FAG轴承
•功率：55kw
•产量：1000公斤/小时
型号 | 产量（千克/小时） | 功率 （千瓦时） | 颗粒尺寸（毫米） | 动力配置 | 机器尺寸（毫米） | 重量（千克） |
S550VT | 800-1000 | 55 | 6-14 | 德国变速箱 | 1600*950*1580 | 2000 |

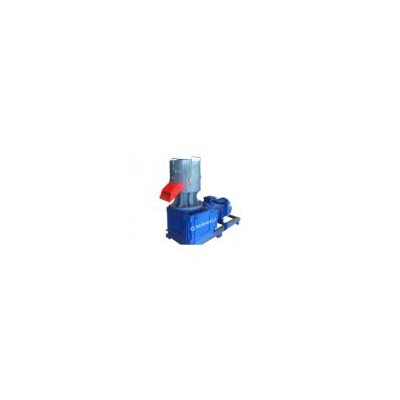

Wood Pellet Machine S550VT 1000kg to 1200kg / hour
The leading manufacturing for Wood Pellet Mill in Malaysia. German reducer gear parts. FAG German bearing. 3 Years warranty.
We are the leading manufacturing for Wood Pellet Mill in Malaysia.
Introduction
The machine is installed by reduction box which adjust the speed of making quality pellets. Our reducer German reducer gear box come with 3 year warranty. S550VT.
The machine is suitable for making the biomass, sawdust pellet and oil cake for the feedstuff which it could be granule pellet for animal feed.
The final size of pellets diameter 2,4, 6, 8,10,12,14mm accroding to customer request. Pellet length can be adjust anytime.
TECHNICAL SPECIFICATION:
CARBON STEEL STRUCTUREASSAB 709 CARBON STEEL DRIVE SHAFTGERMAN REDUCER GEARBOXALLOY STEEL HRC58-60 RING & DIEGERMAN FAG BEARINGPower：55KWOut Put:1000-1200kg/h
Model No. | Out Put (KG/H) | Power (KW) | Pellet Size (MM) | Dynamic Configuration | Machine Size | Weight (KG) |
S550VT | 800-1000 | 55 | 6-14 | German Gearbox | 1600*950*1580 | 2000 |
