| 采样流量 | 2 |
|---|---|
| 测定范围 | 0-14ph |
| 测定时间 | 3s |
| 测量精度 | ±0.1℃ |
| 产品类型 | 水质监测 |
| 定时范围 | 1-24h |
| 工作电压 | 10-36 VDC |
| 工作状态 | 持续 |
| 连续工作时间 | 24h |
| 流量范围 | 1-11 |
| 输出方式 | 模拟型 |
| 温度控制范围 | -30°-+65° |
| 误差 | ±0.1 |
| 噪声 | 1 |
种类：溶解氧
Species: dissolved oxygen
材料：聚合物
Materials: polymer
材料物理性质：导体
The physical properties of materials: conductor
制作工艺：集成
Production process: Integrated
输出信号：模拟型
Output: analog signal
防护等级：高
Protection level: high
线性度：见说明（%F.S.）
Linearity: See Notes (%F.S.)
迟滞：98%秒内至**终值的25°（%F.S.）
Hysteresis: 25 ° 98% seconds to final value (%F.S.)
重复性：见说明（%F.S.）
Repeatability: See Notes (%F.S.)
灵敏度：0.1mg/L
Sensitivity: 0.1mg/L
漂移：无
Drift: no
分辨率：0.1mg/L
Resolution: 0.1mg/L
此传感器可以在野外或实验室中对水样本中的溶解氧的浓度进行测量。溶解氧是水质的一个重要指标，你可以用这个传感器来进行各种类型的测量
This sensor can be used in the field or laboratory in the dissolved oxygen concentration in the water samples were measured by. Dissolved oxygen is an important indicator of water quality measurement, you can use this sensor to carry out various types of
· 在有水生动植物的鱼缸内监测溶解氧。
In the aquatic animals and plants in the fish tank monitoring of dissolved oxygen.
· 监测由水生植物的光合作用和呼吸作用引起的溶解氧浓度的变化。
Change · monitoring of dissolved oxygen concentration caused by photosynthesis and respiration of aquatic plants.
· 对河流或湖水进行定点监测，评估不同种类的动植物对水质的影响能力。
· on the river or lake monitoring was performed to evaluate the ability of animals and plants, different effects on water quality.
· 测量有机物在水中腐烂所消耗的生化所需氧量。
· measurement of organic substances in water consumption required decay biochemical oxygen.
测定水样本中溶解氧浓度与温度之间
Determination of dissolved oxygen concentration and temperature in water samples

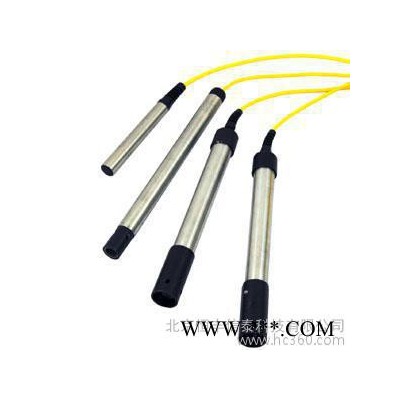

实验室溶氧电极
Laboratory of dissolved oxygen electrode
型号
Model
类型
Type
特点/说明
Features / description
插头
Plug
电缆
Cable
DO12-A0001
DO12-A0001
极谱型
Polarography
NTC10K，输出电流0~400nA，白金阴极，银阳极
NTC10K, output current of 0~400nA, platinum cathode, Yin Yangji
镀锡引线
Tin Lead
10英尺
10 feet
DO12-A0002
DO12-A0002
极谱型
Polarography
NTC2.252K，输出电流0~400nA，白金阴极，银阳极
NTC2.252K, output current of 0~400nA, platinum cathode, Yin Yangji
镀锡引线
Tin Lead
10英尺
10 feet
DO12-A0004
DO12-A0004
极谱型
Polarography
PT1000，输出电流0~400nA，白金阴极，银阳极
PT1000, output current of 0~400nA, platinum cathode, Yin Yangji
镀锡引线
Tin Lead
10英尺
10 feet
MDA003
MDA003
电极替换膜组件
Replace membrane electrode
两个替换膜组件，一瓶溶氧填充液
Two replace the membrane module, a bottle filled with liquid oxygen
