| 产品认证 | CE ROHS |
|---|---|
| 输入电压 | 36 |
| 蓄电池容量 | 150 |
| 品牌 | 雷铭 |
| 型号 | LM-S-600A |
| 加工定制 | 是 |
| 用途/使用范围 | 户外野营、家里停电、出海打鱼、养蜂、打猎、看山、种果园、菜地、山区、林区、牧区、庭院照明、楼道照明、 |
| 主机输出容量 | 190 |
光伏发电系统产品介绍：
太阳能发电系统是通过光能转换成电能的光电转换设备，在无市电情况下可满足家庭用电使用。
可用于家庭通用电源，如节能灯、电风扇、收音机、电视机等小功率电器；也可为山村、无电地区设计，是一套独立太阳能电源设备。无污染，安全可靠，寿命长，运作费用低，无需维护等优点。
1. 可供交、直流两种类型的负载使用。
2. 此系列太阳能发电系统是通过光能转换成电能的光电转换设备，在无市电情况下可满足家庭用电使用。
3. 可用于家庭通用电源，如节能灯、电脑、电风扇、收音机、电视机等中小功率电器。
4. 无污染，安全可靠，寿命长，运作费用低等优点。
5. 多个输出接口：1）AC220V 2个 2）DC12V 2个 3）DC5V 2个。
6.LCD屏可显示充电电流和放电电流以及蓄电池容量，并用拨动开关控制其显示状态。
7. 支持iphone,ipad,安桌手机等大电流充电。
8. 具有过充、过放、过载保护、短路保护、防反接保护，高精度的温度补偿功能。
9. 在光照充足的条件下，每天发电量大约0.72度电。
10.TVS防雷保护。

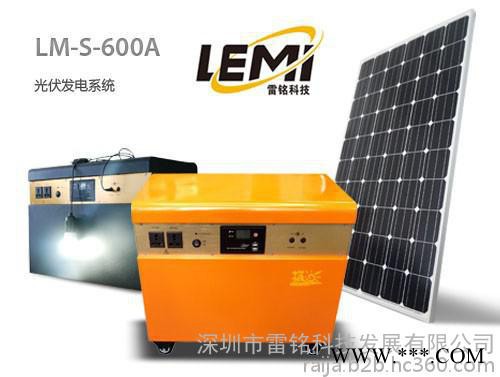

Model No.:LM-S-600A
Specification: 600W
Introduction:
series solar power system refers to the photoelectric conversion equipment which converts light to power and it can satisfy the household electrical if no electricity is available. It can be used for household universal power, such as energy-saving lamp, electric fan, radio, TV and other small power electrical appliances; it is also designed for the mountain village and non-electricity areas. It is a set of independent solar power supply equipment with the advantages such as non-pollution, safe and reliable, long service life, low
operation cost and non-maintenance.
1. Available for DC, AC load.
2. The power supply system refers to the photoelectric conversion equipment which converts light to power and it can satisfy the household electrical if no electricity is available.
3. It can be used for household universal power, such as energy-saving lamp, electric fan,radio,TV and other small power electrical appliances.
4. It is a set of independent solar power supply equipment with the advantages such as non-pollution, safe and reliable,long service life, low operation cost etc..
5. Multiple output adapter.1) 2 AC 220V 2) 2 DC 12V 3) 2 DC 5V
6. Toggle switch controlled LCD screen shows charging and discharging current as well as battery capacity.
7. Compatible with electronic devices,such as iphone, ipad, Android etc.
8. Over-charging, over-discharging protection, overload protection, short circuit protection, power reverse polarity protection as well as high precise temperature compensation function.
9. The system generate 0.72kW.h every day under strong daylight.
10. TVS lightning protection.
技术参数Parameter：
型号Model No. | LM-S-600A |
太阳能板功率Power of solar panel | 240W |
太阳能充电标称电压Nominal Voltage of solar charging | 18VDC |
蓄电池Battery | 12V/200AH |
持续输出功率Continuous Output Power | 600W |
30分钟持续功率30 minutes Continuous Power | 300Wh |
峰值功率Peak Power | 220VAC/1200W |
输出电压Output Voltage | 5VDC/12VDC/220VAC±10% |
输出频率Output Frequency | 50HZ±1HZ |
空载电流 No-load Current | < 1.0A |
工作指示Working Indicator | LCD显示工作状态LCD displaying |
输出波形Output Waveform | 正弦波 Sine Wave |
自动保护Automatic Protection | 过载，过温，短路，欠压，过压Over-load, over-temperature, short circuit, under-voltage,over-voltage |
工作环境温度working temperature | -25℃ + 45℃ |
存储温度Storage Temperature | -40℃ + 70℃ |
应用领域Application：
卫星接收器Satellite Receiver |
| AC25W | 1 | 10H | 250WH |
负载总功率应小于0.6KW The total load power should be less than 0.6KW. |
手机充电Cellphone | 充电电流500MACharging Current 400MA | DC5W | 2 | 3H | 30WH | |
LED灯泡LED Lamp | DC7W | 2 | 5H | 70WH | ||
彩色电视 Color TV |
| AC50W | 1 | 5H | 250WH | |
风扇Fan |
| AC30W | 1 | 3H | 90WH | |
电脑Computer |
| AC65W | 1 | 5H | 325WH | |
总计Total Power | AC170W+DC12W=182W | 1015WH | ||||
