| 性能参数 | |
| 型号 | GYS1000-12-220 |
| 输出功率 | 1000W |
| 峰值功率 | 2000W（5毫秒内） |
| 输入电压 | 12VDC |
| 输出电压 | 220VAC±3% |
| 空载电流 | ＜1.2A(DC13V) |
| 输出频率 | 50HZ±1%/60HZ±1% |
| 输出波形 | 纯正弦波 |
| 波形失真 | THD＜3% |
| 输出效率 | ＞95%(DC13V) |
| 输入电压范围 | 10.6V～15.5V |
| 欠压报警 | 10.5±0.3V |
| 欠压保护 | 9.5±0.2V |
| 过压保护 | 16±0.5V |
| 欠压恢复 | 11.8±0.3V |
| 过压恢复 | 15.7±0.3V |
| 过载保护 | 120%～125% |
| 保护功能 | 欠压：LED红灯亮，蜂鸣器报警，自动恢复 |
| 过压：LED红灯亮，自动恢复 | |
| 过载：LED红灯亮，自动关机，需重新开机 | |
| 过温：LED红灯亮，蜂鸣器报警，自动恢复 | |
| 短路（2秒内）：自动恢复 | |
| 输入反接：保险丝熔断 | |
| 工作环境温度 | –10℃- +50℃ |
| 储存环境温度 | –30- +70℃ |
| 湿度 | 20%～90%RH 无冷凝 |
| 工作海拔 | ≦1200m |

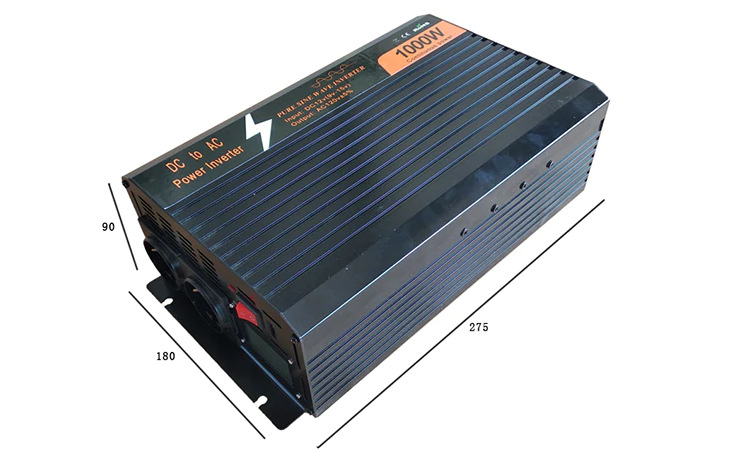

| 产品尺寸 | (270+60)*180*90mm |
| 产品净重 | 3.1±0.01kg/台 |
| 包装尺寸 | 395*285*150mm/台 |
| 包装重量 | 4±0.1kg/台 |
Output power: 1000W
Peak power: 2000W
Input voltage ( range ): DC 12V ( 9.5 - 15.5V ), DC 24V ( 19 - 31V ), DC 48V ( 40 - 61V )
Output voltage ( single choice ): 100V AC / 110V AC / 120V AC / 220V AC / 230V AC / 240V AC
No-load current: Less than 0.6A / 0.3A / 0.2A
Output frequency 50Hz or 60Hz
Output waveform: Pure sine wave
Output waveform harmonic component THD less than 3 percent ( pure resistive load )
Display Type LCD / LED Optional
USB 5V, 2.1A
The highest output efficiency more than 85 percent.
Undervoltage protection first alarm ( breaking alarm sound is one ), LED red light flashes, voltage continues to decrease off.
Overvoltage protection alarm ( breaking alarm sound is two ) LED red light flashing, off.
Overload protection: Continuous alarm, LED red flashing, shutdown.
Over-temperature protection First alarm ( broken alarm sound is two ), the temperature continues to rise LED red light flashes and turns off.
Short-circuit protection, short-circuit protection without breaking the circuit.
Reverse protection fuse blown.
Undervoltage alarm range 21
Undervoltage protection range 19
Overvoltage protection range 31
Undervoltage recovery range 24
Overvoltage recovery range 28V
Working environment temperature -10 - 50 Deg.c
Cooling method, intelligent air cooling.
Specification
SpecificationsDimension and WeightPackage Contents
| Input ( Car Charger ): 12V Output ( Car Charger ): (100vAC/110vAC/120vAC/220vAC/230vAC/240vAC) ±5% Working Temp.(℃): -10~50°C Material ( Cable&Adapter): ABS,Brass |
| Product weight: 2.8000 kg Package weight: 3.5000 kg Package size (L x W x H): 42.50 x 15.50 x 22.50 cm / 16.73 x 6.1 x 8.86 inches |
| Package Contents: 1 x Car Inverter, 2 x Pure Copper Cable, 4 x Spare Fuse |
